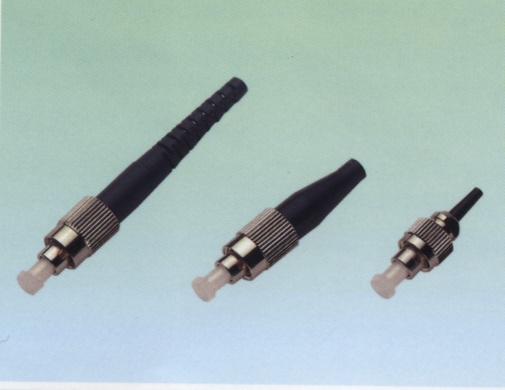

FC connector |
Specifications:
Insertion loss: < 0.3dB S.M.
Return loss: (single mode)
<=-45dB PC
<=-50dB SPC
<=-55dB UPC
Durability (200matings): 0.2dB
max.increase
Operating temperature: -20°C ~
+70°C
Storage temperature: -40°C ~ +80°C
Features: Applications:
Telecommunication networks.
Instrumentation.
LAN/WAN.
CATV.
|
Type |
Boot size |
|
| SM / MM | onepiece / Multi piece | 3.0 | ||
| SM / MM | onepiece / Multi piece | 2.4 | ||
 |
||||
| SM / MM | onepiece | 2.0 | ||
| SM / MM | Multi piece | 0.9 | ||
|

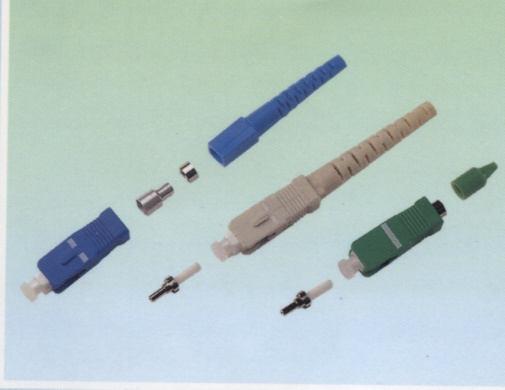

SC connector |
Specifications:
Insertion loss: < 0.3dB S.M.
Return loss: (single mode)
<=-45dB PC
<=-50dB SPC
<=-55dB UPC
Durability (200matings): 0.2dB
max.increase
Operating temperature: -20°C ~
+70°C
Storage temperature: -40°C ~ +80°C
Features: Applications: Local area networks.
Data transmission.
LAN/WAN.
CATV. |
Type |
Boot size |
|
| SM / MM | onepiece / Multi piece | 3.0 | ||
| SM / MM | onepiece / Multi piece | 2.4 | ||
 |
||||
| SM / MM | onepiece / Multi piece | 2.0 | ||
| SM / MM | onepiece / Multi piece | 0.9 | ||
|

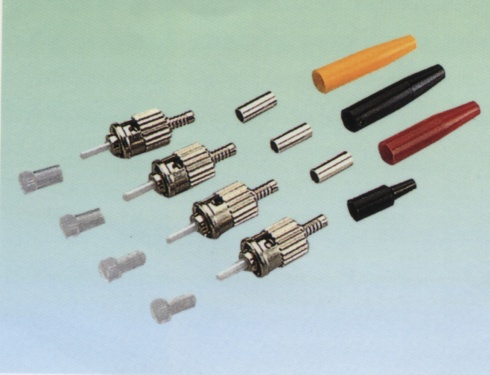

ST connector |
Specifications:
Insertion loss: < 0.3dB S.M.
Return loss: (single mode)
<=-45dB PC
<=-50dB SPC
<=-55dB UPC
Durability (200matings): 0.2dB
max.increase
Operating temperature: -20°C ~
+70°C
Storage temperature: -40°C ~ +80°C
Features: Applications:
Telecommunication networks.
Instrumentation.
Data communication networks.
LAN.
|
Type |
Boot size |
|
| SM / MM | onepiece / Multi piece | 3.0 | ||
| SM / MM | onepiece / Multi piece | 2.0 | ||
 |
||||
| SM / MM | onepiece / Multi piece | 0.9 | ||
|

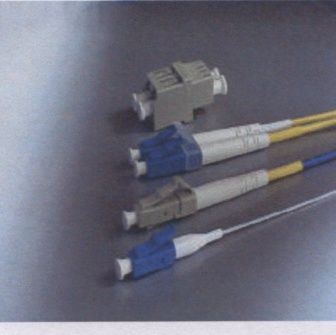

LC connector |
Specifications: Insertion loss: < 0.3dB Return loss: <=-45dB PC <=-50dB SPC <=-55dB UPC Operating temperature: -20°C ~ +70°C Storage temperature: -40°C ~ +80°C Features: with high precision ziconia ferrule and sleeve Half size of standard connector increasing mounting density Compatible to RJ-45 connector easy to termination |
Pruducts:
BTW connector Simplex/Dueplex jumper connector Dueplex adaptor |
||
 |
||||
