| Attenuation ( dB ) |
1 ~ 30 |
|
| Connector Type |
FC Attenuator |
|
| Polish type |
PC |
APC |
|
Return Loss ( 1310 ±20 nm ) |
≧ 50 dB | ≧ 60 dB |
| Wave length | 1310，1550 ± 20 nm | |
★ Bellcore ： GR - 910 - CORE
★Temp. Range：－40℃to ＋85℃
★Durability：＜0.2 dB change after 500 cycles
|
|
||
| Attenuation ( dB ) |
1 ~ 30 |
|
| Connector Type |

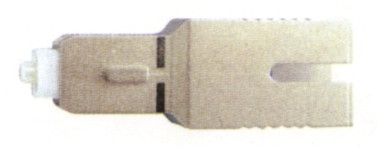

SC Attenuator |
|
| Polish type |
PC |
APC |
|
Return Loss ( 1310 ±20 nm ) |
≧ 50 dB | ≧ 60 dB |
| Wave length | 1310，1550 ± 20 nm | |
★ Bellcore ： GR - 910 - CORE
★Temp. Range：－40℃to ＋85℃
★Durability：＜0.2 dB change after 500 cycles
Features：
1、Excellent return loss
2、Stable attenuator in a wide wave length range
3、Various connector types ：SC，FC
4、Custom defined specifications
